Newly released photos gives insight on the South African made Cheetah

Ekene Lionel by Ekene Lionel
February 27, 2018 - Updated on November 12, 2026
in Land
Reading Time: 6 mins read
USS Forrest Sherman DDG-98 Cheetah

South African made Denel (Formerly Atlas Aircraft Corporation) Cheetah Fighter jet

Newly released photos gives insight on the South African made Cheetah

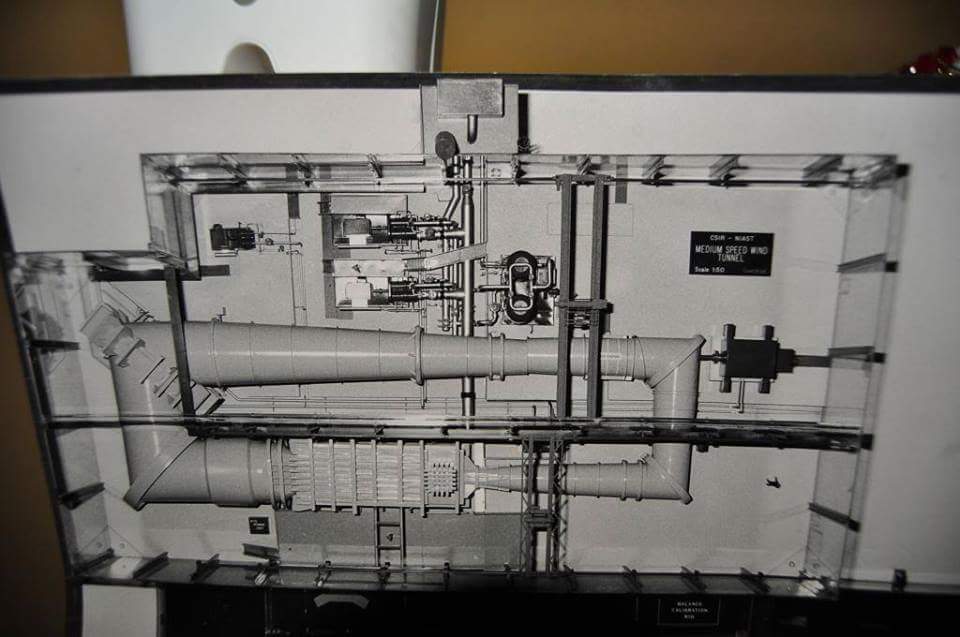

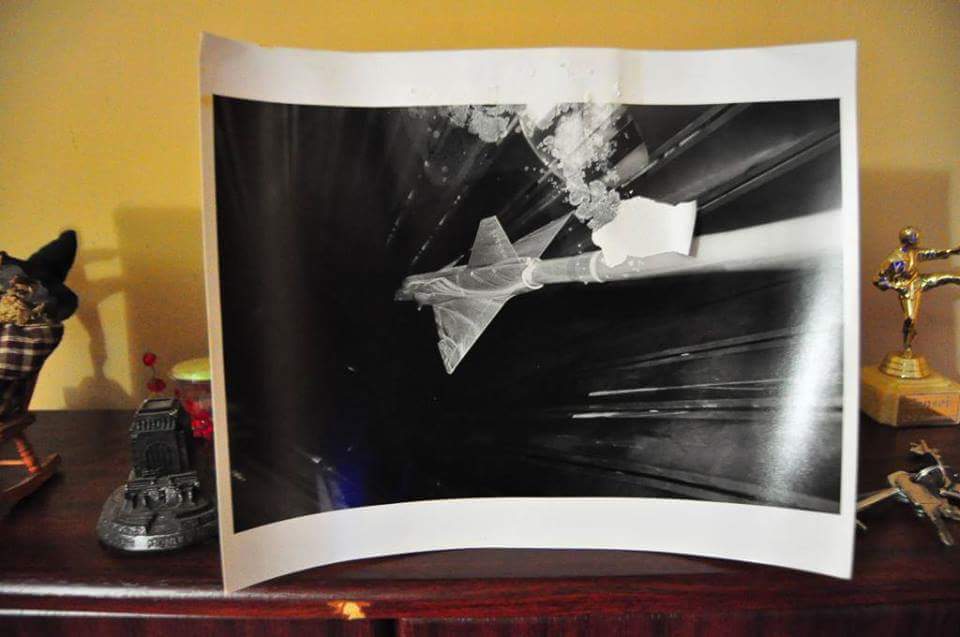

A recently leaked photos surfaced online showing the Denel Cheetah (formerly Atlas Cheetah) undergoing wind tunnel testing in Atlas Aircraft Corporation facility in South Africa. This newly released pictures are quite significant because primarily, it dispels the widely believed notion that the South African Atlas Cheetahs were just modified Israeli Dassault Mirage III delivered in Completely Knocked down Kits (C.K.D) form.

ADVERTISEMENT

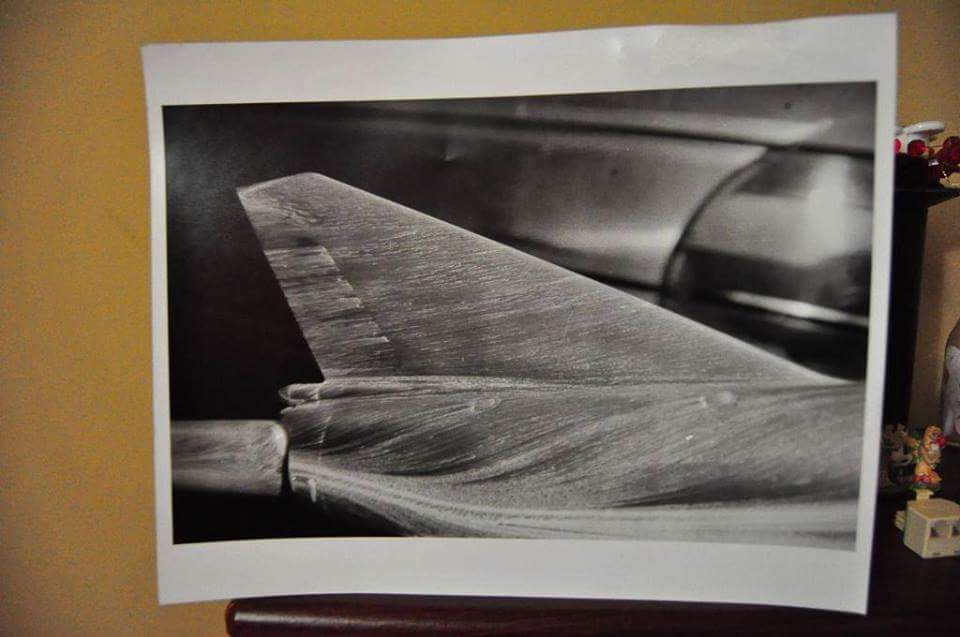

The newly released pictures shows that there was quite an extensive work done on the original Mirage III airframe.

The newly released pictures
Newly released photos gives insight on the South African made Cheetah
Newly released photos gives insight on the South African made Cheetah
Newly released photos gives insight on the South African made Cheetah



Newly released photos gives insight on the South African made Cheetah



Newly released photos gives insight on the South African made Cheetah


History of the Atlas Cheetah

In the early 1980s, South Africa shared border with countries equipped with sophisticated Soviet military equipment such as the Mig-23 Flogger, MiG-21 FishBed, MiG-27 Flogger II etc.

Newly released photos gives insight on the South African made Cheetah

Furthermore, a United Nations Security Council Resolution 418 (arms embargo) meant that the nation could not get access to new weapons and ammunitions, the only option was to upgrade existing platforms to remain relevant.

Development of the Atlas Cheetah

It is widely believed that Israel supplied technical assistance to the South Africa during the development of the Cheetah fighter. The Israeli had gathered quite a lot of technical experience and knowledge in upgrading their own Mirage III to ‘Kfir’ standard. Notable Israeli technology like avionics, digital systems and forward fixed canards could be seen incorporated on the Cheetah.

Newly released photos gives insight on the South African made Cheetah

The radars, avionics, self-protection systems and electronic warfare suite was modified according to South Africa Air Force requirement.

Design of the Atlas Cheetah

Although, the Cheetah is an all new design however, it airframe looks like the Dassault Mirage III and it retains many of the Mirages physical features such as the side-mounted intakes, pointed nose, delta wing and landing gears. It was fitted with a SNECMA Atar 9K50C-11 series afterburning turbojet engines which delivered 16,000ibs of thrust allowing for a top speed of Mach 2.2 at maximum altitude. It maximum take-off weight was 30,200ibs.

Newly released photos gives insight on the South African made Cheetah

It had an Israeli Eita EL-2001 radar, glass cockpits, Hands on Throttle and Stick (HOTAS) and an impressive weapons load-out. The most notable difference between the Cheetah and the Mirage III includes the bolt-on aerial refueling probe, fixed canards surfaces, dogtooth wing extensions and additional wing mounted weapons hardpoints.

Performance of the Atlas Cheetah

The Cheetah was a multi-role fighter jet capable of both air and ground combat. It was fitted with new missile and radar warning sensors, electronic warfare and chaff and flare launchers for self-defense.

Atlas Cheetah in flight
Atlas Cheetah in flight
Newly released photos gives insight on the South African made Cheetah
Atlas Cheetah D cockpit

A South African Helmet mounted sight (a new technology at the time) was also mounted. The resulting Cheetah’s performance was very impressive.

Its armament includes a twin DEFA 552 30 mm cannon and python/ Darter air-to-air missiles. The Cheetah could also carry various air-to-surface munitions, precision guided bombs (PGMs), rocket pods, gun pods and drop tanks.

It can climb at a rate of 45,950ft/Minute, its ferry range was 2,600 km while its combat radius is 1,300 km. It service ceiling is 17,000 m.



The new Cheetah C is regarded as comparative to the McDonnell Douglas/Boeing F-15 Eagle air superiority fighter.

The Cheetah has since been replaced by 26 Swedish built SAAB JAS 39 Gripen multi-mission fighter jet. The Cheetah has been sold to other nations and organizations; Ecuador bought 10 Cheetah C and two Cheetah D model while Chile acquired five Cheetah E in 2003.

Newly released photos gives insight on the South African made Cheetah

Draken International acquired twelve for use in its adversary training in the United States.
